Rabine has successfully completed a wide range of projects across the nation, with commercial scopes ranging from small-scale to large-scale developments. Explore highlights from our recent work and see how we deliver exceptional results for our clients:

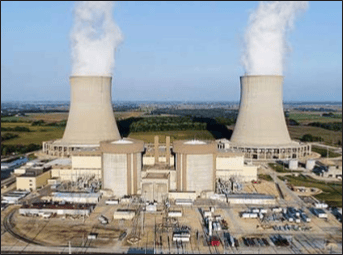

LOCATION

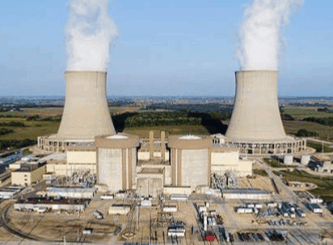

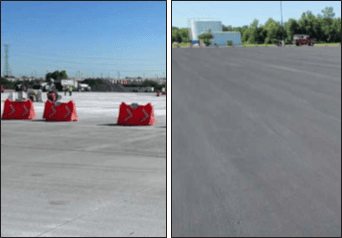

Byron, Illinois
TYPE OF PROJECT
Road way inside plant security/ Employee parking lot
TYPE OF CONTRACT
Design/Build
PROJECT SIZE
101,802 SF.
SELF-PERFORM
Rabine Paving
NATURE OF THE PROJECT
Asphalt Pavement 6” Full Depth Restoration: 6” Asphalt Mill and Bituminous Pavement Restoration. Mill existing asphalt pavement failures in drive lanes to existing sub base and haul off site to approved recycling location. Compaction of all aggregate sub base sections prior to placement of Bituminous Asphalt Binder. Sweep and clean existing asphalt pavement to remove debris using mechanical brooms. Construct a two (2) course 4.0” HMA Bituminous Binder Course – N50 Mix Design. Construct a one (1) course 2.0” HMA Bituminous Surface Course – N50 Mix Design. Finish Roll Bituminous asphalt pavement to meet transitions and final grades.

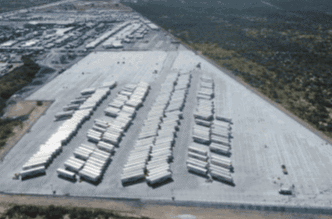

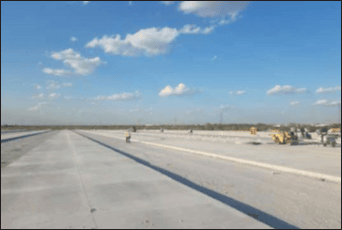

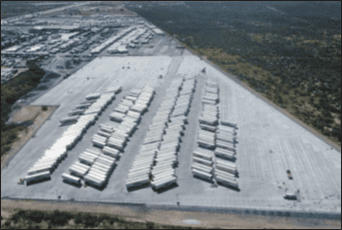

LOCATION
Nuevo Laredo, Mexico
TYPE OF PROJECT
New Truckyard
TYPE OF CONTRACT
Design/Build
PROJECT SIZE
The project encompasses a substantial 1,000,000.00 sqft, providing parking for 900 tractor trailers.
NATURE OF THE PROJECT
The scope of work for this project involves the construction and design-assist of approximately 25 acres of RCC concrete pavement, 9” inches of roller-compacted concrete, for the parking of 900 tractor trailers. Additionally, the project includes the extension of underground duct banks, water lines, and storm systems, which involves trench drain installation. All lighting and electrical. A significant amount of fill material was trucked in to raise the elevation of the site, and cement stabilized base was utilized.
LOCATION

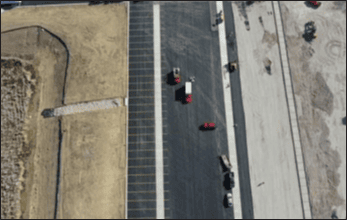

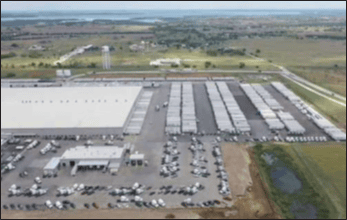

Sanger, Texas
TYPE OF PROJECT
Distribution Center Expansion
TYPE OF CONTRACT
Design/Build
PROJECT SIZE
15 Acres
NATURE OF THE PROJECT
The scope of work included the turnkey design-build and construction of approximately 15 acres of heavy civil infrastructure for the Walmart Distribution Center in Texas. The project expanded three existing lots to accommodate increased logistical capacity and overflow parking for 800 tractor-trailers.
Civil work encompassed mass grading for the new storage lots, modifications to detention ponds to handle the increased stormwater runoff, storm drainage enhancements, asphalt paving, concrete curbing, 8” concrete dolly pads, the extension of underground duct banks and water lines, and the installation of new site lighting. Key project highlights included: (1) Significant fill material was required to raise subgrade elevations, followed by cement-treated base stabilization to ensure structural integrity. (2) Asphalt pavement sections were installed at a thickness of 10”, and the concrete dolly pads at 8”. (3) All work was performed in strict compliance with the Stormwater Pollution Prevention Plan (SWPPP) and met the permit requirements and regulations the Environmental Protection Agency (EPA) set forth.

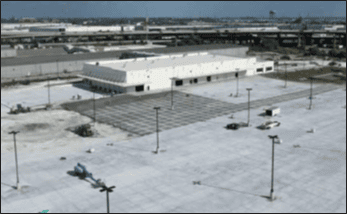

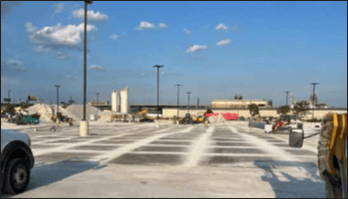

LOCATION

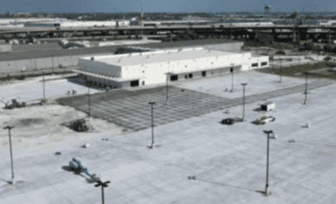

Baltimore, Maryland
TYPE OF PROJECT
Industrial Manufacturing Facility
TYPE OF CONTRACT
Design/Build
PROJECT SIZE
750,000 SF 10” of RCC
SCOPE PERFORM
Roller-Compacted Concrete
NATURE OF THE PROJECT
The scope of work includes the construction and design-assist of approximately 20 acres of concrete pavement (18” roller-compacted concrete) for storage of containers as well as traffic lanes to maintain circulation into and around storage areas. Additional work includes extension of underground duct banks, water lines and storm systems which includes trench drain. A large amount of fill material needed to be brought in to raise elevation of the site.

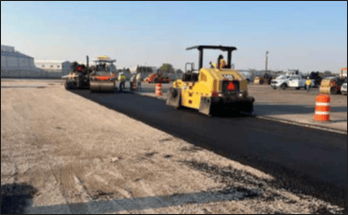

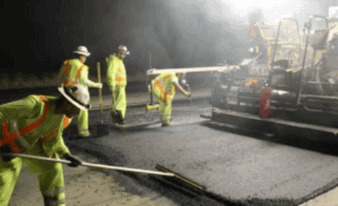

LOCATION
Henderson, Colorado
TYPE OF PROJECT
Industrial Rail Auto/ Container yard
TYPE OF CONTRACT
Design/Build / CMAR
PROJECT SIZE
1.6 Million SF
SCOPE PERFORM
Full-depth asphalt pavement removal, installation of base, Soil stabilization, Installation of new concrete curbs, and dolly pads.
NATURE OF THE PROJECT

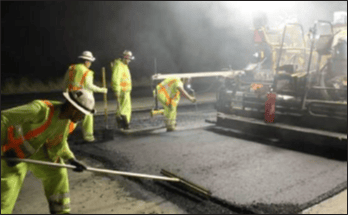

Union Pacific recently renovated one of its major auto yards in Henderson, Colorado. . Originally the project was budgeted at $4.9 million, the project escalated to $6.5 million due to unsuitable subgrade issues that required additional work before asphalt could be laid. The main objective was a 2-inch mill and overlay on the southern section of the yard. Installation of geogrid and base rock was placed before adding new asphalt. Exceptional performance earned a second phase of the project the following year. Allowing our management team to oversee two additional Union Pacific projects. One of which included the auto yard and the Denver Intermodal Terminal. The auto yard work required refurbishing the heavy haul road by milling 8 inches of asphalt, mixing lime and cement with the existing soil, and then laying/ installing new asphalt. This project came to a total of $1.3 million. Meanwhile, the second project was a container yard project involving a 2-inch mill and overlay of an additional $1 million. This included inlet repairs around the yard and various utility reconstruction tasks.
LOCATION
Grayslake, Illinois
TYPE OF PROJECT
Trucking Logistics Facility
TYPE OF CONTRACT
Design/Build
PROJECT SIZE
305,000 SF of 6” HMA Pavement Full Depth Restoration. 85,000 SF of 3” Mill and Overlay converted from the Full Depth Pavement 165,000 Full Depth 5” Pavement Removal with 5% Cement Stabilization Sub – base 6” Underdrains tie into existing storms to capture ground water. 16” Bio Swale reconstruction to increase drainage on lots 42,000 SF of 10” PCC Dolly Pad Replacement. 5000 SF of 10” PCC Gate Entrance with new gate loops and security sensors
SCOPE PERFORM
Full-depth asphalt pavement removal and installation with base stabilization and Bioswale: Installation of new concrete curbs, dolly pads and sidewalks
NATURE OF THE PROJECT
The scope of work includes full-depth asphalt pavement removal with base stabilization installation and Bioswale construction. Installation of new concrete curbs, dolly pads and sidewalks constructed to reinforce pavement throughout a high-performance trucking facility company.
